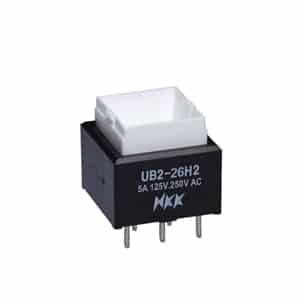

UB226SKW036G

Low Profile Pushbuttons

UB2 Series
Low Profile Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
UB226SKW036G
Description
Low Profile Pushbuttons
Name
Pushbutton
Series
UB2
Poles
DPDT
Circuits
On-On
Current Rating
5A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Plunger for Cap
illumination color
LED, Blue
illumination voltage
3.6 VDC
Mounting Type
Through Hole
Termination Style
PC Pin
Features
Epoxy Sealed Terminals
Rating
5
Illumination
Illuminated
