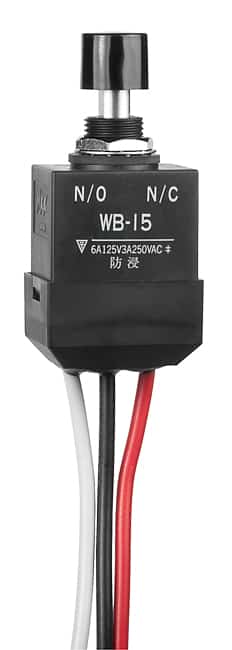

WB15L-DA

Environmentally Sealed Pushbuttons

WB Series
Environmentally Sealed Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
WB15L-DA
Description
Environmentally Sealed Pushbuttons
Name
Pushbutton
Series
WB
Poles
SPDT
Circuits
On-Mom
Current Rating
6A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Round, Button
Actuator Cap Color
Black
Mounting Type
Panel Mount, Rear
Termination Style
Wire Leads
ingress protection
IP67
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular - 12.50mm Dia
Rating
6
Illumination
Non-Illuminated
