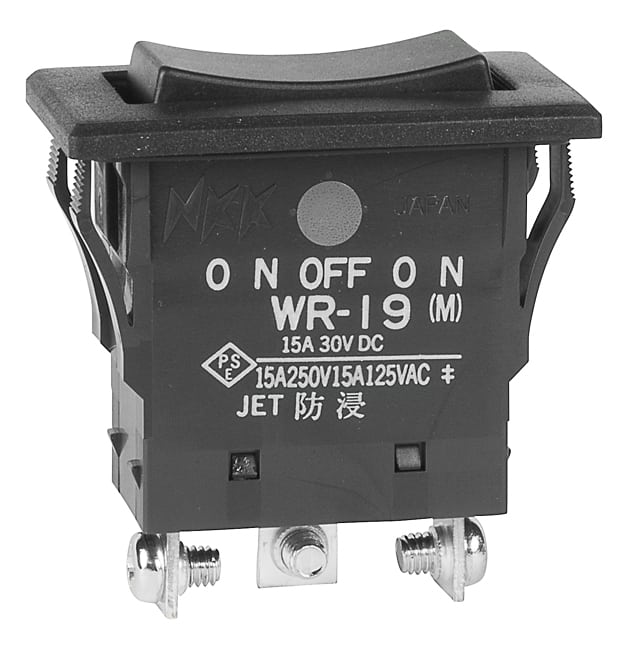

WR19AT

Environmentally Sealed Rockers

WR Series
Environmentally Sealed Rockers

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
WR19AT
Description
Environmentally Sealed Rockers
Name
Rocker
Series
WR
Status
Active
Poles
SPDT
Circuits
On-Off-Mom
Current Rating
15A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Concave (Curved)
Actuator Cap Color
Black
Actuator Marking
No Marking
Mounting Type
Panel Mount, Snap-In
Termination Style
Screw Terminal
ingress protection
IP67
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 34.20mm x 17.20mm
Rating
15
Illumination
Non-Illuminated
