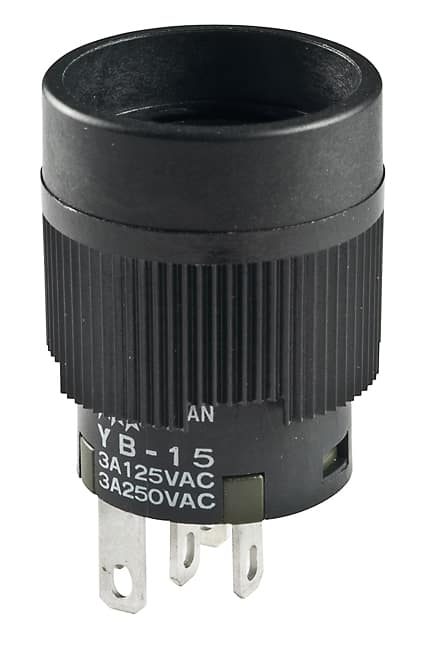

YB15CKW01

Short Body Pushbuttons

YB Series
Short Body Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
YB15CKW01
Description
Short Body Pushbuttons
Name
Pushbutton
Series
YB
Poles
SPDT
Circuits
On-Mom
Current Rating
3A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Plunger for Cap
Mounting Type
Panel Mount, Front
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular - 16.00mm Dia
Rating
3
Illumination
Non-Illuminated
