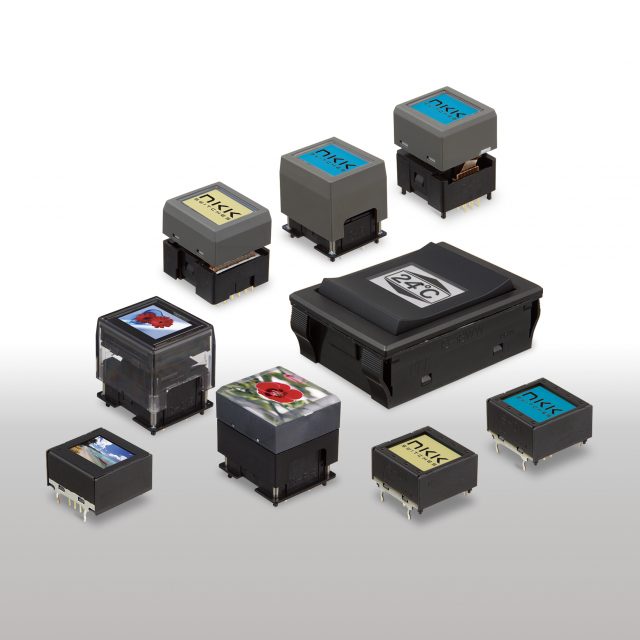

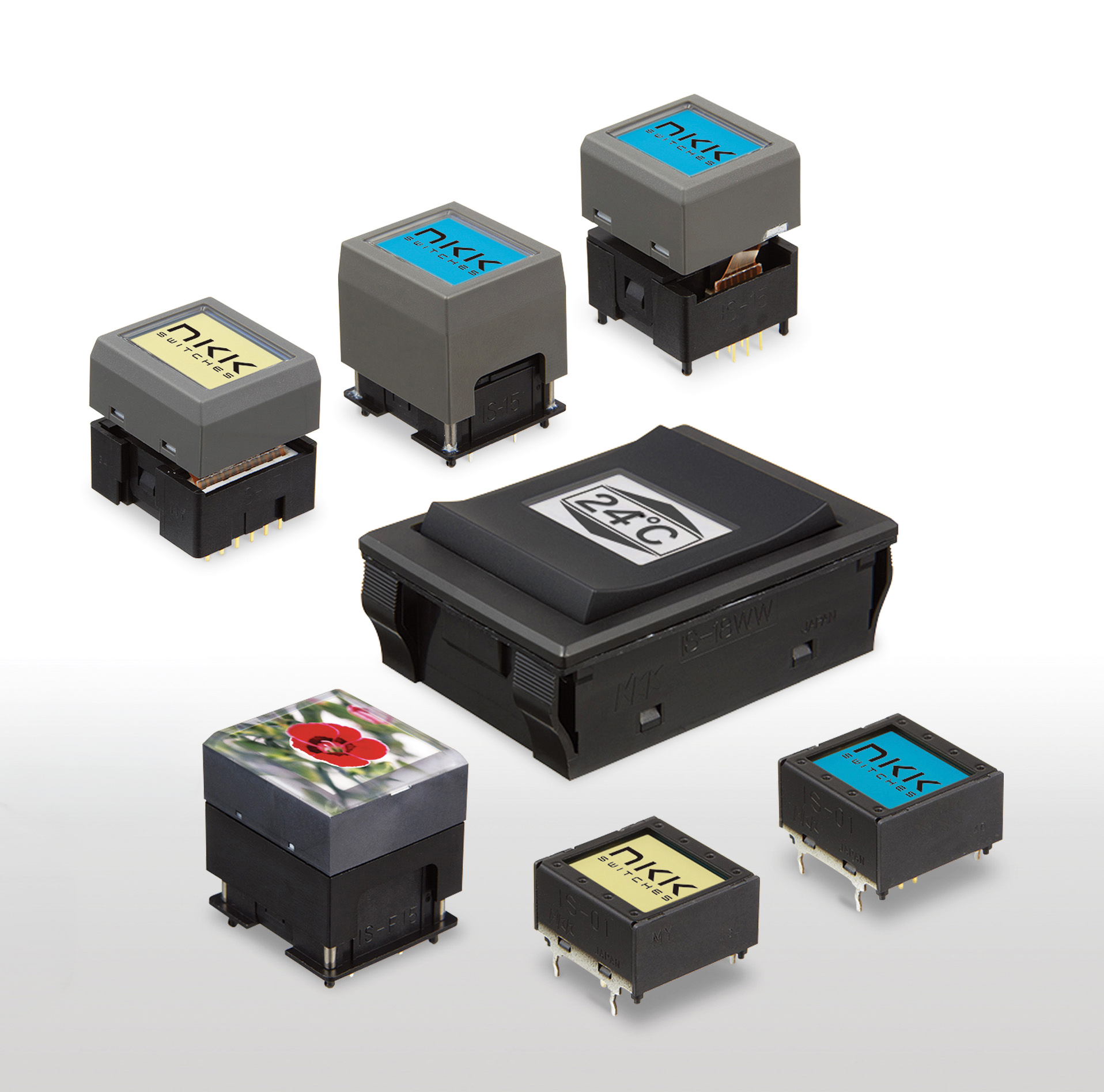

SmartDisplay™

• Three new IS Systems introduced within IS-71005 SmartDisplay (LCD 36 x 24): brilliant solutions to enhance HMI and simplify the user’s management.
• IS-71005 systems include the IS-C3201 Intelligent Controller and are designed in three different configurations.
• All necessary accessories are included in each system.
• User manuals for all controllers and logic boards can be found here under the Documentation tab.

• Two new IS Systems introduced within IS-71006 SmartDisplay (LCD 64 x 32): brilliant solutions to enhance HMI and simplify the user’s management.
• IS-71006 systems include the IS-C32G1 Intelligent Controller and are designed in two different configurations.
• All necessary accessories are included in each system.
• User manuals for all controllers and logic boards can be found here under the Documentation tab.

• Assists with rapid prototyping and understanding the capabilities of the different SmartDisplay products.
• Contains all the necessary components to get you started using, testing and ultimately incorporating NKK Switches' SmartDisplay into your designs.
• The development kits come pre-programmed for demonstration. They can be reprogrammed by the user for demonstration or real-time application.
• NKK provides a free PC software (Universal Communicator 2015) for programming the development kits.
• IS-DEV-KIT-9, IS-DEV-KIT-8, IS-DEV-KIT-7, IS-DEV-KIT-7D, IS-DEV-KIT-6, IS-DEV-KIT-6C, IS-DEV-KIT-6D, IS-DEV-KIT-5, IS-DEV-KIT-5C, IS-DEV-KIT-5D, AT9946-93G, AT9946-091B, AT9946-099A, IS-S0109DEM, IS-CL04FL

• Part Number: ISF15ACP4 -- High definition, contrast and resolution of 96RGB x 64 pixel in a compact screen and minimal frame.
• Range of 65K colors in 16-bit mode. Operating life of 50,000 hours minimum.
• Maximum use of display lens with ultra-thin frame provides full screen capacity; 180-degree viewing angle.

View Part Details

• Part Number: ISC15ANP4 -- Organic LED technology with 30,000 hours life and 30% less power consumption.
• Range of 65,536 colors in 16-bit mode, 256 colors in 8-bit mode. Full viewing angle of 180 degrees.
• High resolution provides sharp, clear images of very small characters.
• Enhance your designs with a switch that runs video or image sequences. Ideal for control rooms with real-time data, audio and broadcast panels, mission-critical applications, and medical applications.

View Part Details

• Part Number: ISC01P -- Organic LED technology. High resolution of 52RGB x 36 pixels.
• One of the industry's smallest OLED displays with a viewing area of 12.9mm x 9.9mm (horizontal x vertical).
• Exceptional contrast: 50 times greater than LCD products.
• Full viewing angle of 180 degrees. Range of 65,536 colors in 16-bit mode, 256 colors in 8-bit mode.

View Part Details

• Part Number: IS18WWC1W -- White monochrome OLED featuring sharp contrast and high resolution with 96 x 64 pixels.
• Wide viewing angle of 180 degrees and large .92" display with exceptional contrast. Organic LED technology in display rocker.
• Multifunction programmable device: select with rocker, push for activation.

View Part Details

• Part Number: IS15EBFP4RGB-09YN -- Travel distance of 1.8mm.
• Programmable display graphics for alphanumeric characters and animated sequences. 64 colors of backlighting can be controlled dynamically. Pushbutton switch with LCD, RGB LED backlighting.
• Incorporated bitmap display function. Low energy consumption. Dust-tight construction.
• Viewing area: 17.0mm x 13.0mm (horizontal x vertical). High resolution of 64 x 32 pixels.

View Part Details

• Part Number: IS15EBFP4RGB -- Travel distance of 4.5mm (same as KP01 Series).
• Programmable display graphics for alphanumeric characters and animated sequences.
• 64 colors of backlighting can be controlled dynamically. Pushbutton switch with LCD, RGB LED backlighting. Low energy. Dust-tight construction. Viewing area: 17.0mm x 13.0mm (horizontal x vertical).
• High reliability and long life of three million actuations. High resolution of 64 x 32 pixels.

View Part Details

• Part Number: IS01EBFRGB -- Programmable display graphics for alphanumeric characters and animated sequences.
• 64 colors of backlighting can be controlled dynamically. Display with LCD, RGB LED backlighting.
• Incorporated bitmap display function. Low energy consumption with dust-tight construction.
• Viewing area: 14.4mm x 11.8mm (horizontal x vertical). High resolution of 64 x 32 pixels.

View Part Details

• Part Number: IS15ESBFP4RGB -- Compact size combined with high resolution of 64 x 32 pixels.
• 64 colors of backlighting can be controlled dynamically.
• Pushbutton switch with LCD, RGB LED backlighting. Incorporated bitmap display function. Dual-image VRAM for quick change of displayed images.
• Low energy consumption. Dust-tight construction. Viewing area: 14.5mm x 11.8mm (horizontal x vertical).

View Part Details

• Part Number: IS15BBFP4RGB -- Standard with enhanced LED illumination. Broad and even light diffusion.
• Consistent backlighting with low energy consumption. Programmable LCD with a variety of LED backlighting colors.
• Rubber dome. Epoxy-sealed straight PC terminals. RGB backlighting provides infinite color availability.
• Programmable to display graphics, alphanumeric characters and animated sequences.
• Wider viewing area of 17.0mm x 13.0mm (horizontal x vertical) at 36 x 24 pixels.

View Part Details

• Part Number: IS15BAFP4CF -- Standard with enhanced LED illumination.
• Broad and even light distribution. Consistent backlighting. Low energy consumption. Programmable LCD with a variety of LED backlighting colors. Rubber dome.
• Epoxy-sealed straight PC terminals. Wider viewing area 17.0mm x 13.0mm (horizontal x vertical) at 36 x 24 pixels.
• Dome gives crisp tactile feedback to positively indicate circuit transfer.

View Part Details

• Part Number: IS01BBFRGB -- Standard with enhanced illumination.
• Programmable to display graphics, alphanumeric characters and animated sequences. RGB LED provides numerous color variations.
• Viewing area 14.4mm x 11.8mm (horizontal x vertical) at 36 x 24 pixels.
• Integrated LCD display provides wide viewing angle with high contrast and clarity.

View Part Details

• Part Number: IS15BSBFP4RGB -- Compact size. Perfect for rack mount router and other applications with space limitations.
• Compact body size: 19.0mm (.748") x 18.0mm (.709") compared to Standard body size: 23.13mm (.911") x 20.59mm (.811"). Vibrant Illumination.
• Low-energy-consumption programmable LCD with a variety of LED backlighting colors. Rubber dome. High reliability and long life of one million actuations minimum.
• Epoxy-sealed terminals prevent entry of solder flux and other contaminants.

View Part Details

• Part Number: IS15BSAFP4CF -- Programmable LCD, vibrant illumination.
• Perfect for rack mount router and other applications with space limitations.
• Compact body size: 19.0mm (.748”) x 18.0mm (.709”) compared to Standard body size: 23.13mm (.911”) x 20.59mm (.811”).

View Part Details

• Part Number: IS-S0109DEM -- A plug and play controller/indicator device made available to highlight the functionality and features of the powerful S0109 Single Switch Solution
• The S0109 is a single switch, human machine interface (HMI) solution packaged in a small panel mount, pushbutton-sized display that allows for monitor and control of applications.
• NKK customizes the S0109 device, per user requirements, with its in-house engineering design services.

View Part Details

• Part Number: IS-C3201 - Intelligent Controller for LCD 36x24 SmartDisplay
• Control up to 32 LCD 36x24 SmartDisplay, two banks of 16
• USB, RS232, RS422/RS485 communication
• User downloadable images and backlight colors
• Stand-alone operation or real-time control by host
• Reports switch activities via serial port

View Part Details

• Part Number: IS-C32G1 - Intelligent Controller for LCD 64x32 SmartDisplay
• Control up to 32 LCD 64x32 SmartDisplay, two banks of 16
• USB, RS232, RS422/RS485 communication
• User downloadable images and backlight colors
• Stand-alone operation or real-time control by host
• Reports switch activities via serial port

View Part Details

• ISDCB8 Ribbon Cable
• Available in a variety of lengths
• Used to connect SmartDisplay controller boards to SmartDisplay logic boards, and to connect SmartDisplay logic boards to one another
• ISDCB8 Ribbon Cable is a 14-conductor cable with two 7 x 2 receptacles and .100” spacing

• NKK provides a full set of accessories for the SmartDisplay product line
• SmartDisplay accessories are common to all or most of the SmartDisplay Series
• The accessories include power supplies, serial communications cables, and ribbon cables
• Accessories specific to each part are highlighted in the Kits & Accessories section

• NKK is committed to helping you with a successful new product design!
• We offer engineering support and custom in-house value-added capabilities for many products including SmartDisplay.
• Contact us to learn more about NKK's Value Added Solutions @ 1-877-2-BUY-NKK.
